What to Check When Replacing a Fuel Valve and When It Is Due

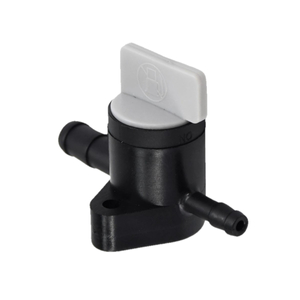

A fuel line that keeps weeping even with the valve closed usually points to a tired fuel valve. The 16950 fuel shutoff valve is a ball valve switch common on small engines: a white flip lever, a black body, two barbed hose ports on the side and one tank port at the bottom, plus a mounting tab that bolts to the tank or frame.

What do you actually check before fitting one? Match the barbs to the fuel line size and let the hose clamps do their job. Line up the mounting hole and the way the body sits, because if the old part's hole does not match, the valve will not mount. The 16950 name covers several variants, and lookalike parts are not always interchangeable, so compare it with the original valve or send a photo for confirmation first.

When is it due? Fuel still passes with the lever off, the lever slips and will not stay put, the body cracks, or the barbs deform — any of these means fit a new unit. A seeping valve is a safety item: fix it now, not on the job site.

For anyone servicing mowers, tillers or brush cutters, and for parts sellers, a few 16950 fuel valves on the shelf is worth keeping — they tend to fail first once the fuel line starts to age.
