4500 5200 5800 Chainsaw Brake Plate When to Replace

A chainsaw that will not stop, or a brake lever that feels loose and vague, usually points to the chainsaw brake assembly, not the bar or the chain. The chain brake is the safety device on a gasoline saw: when kickback happens, the handle has to stop the chain instantly, and a worn assembly takes longer to do the job.

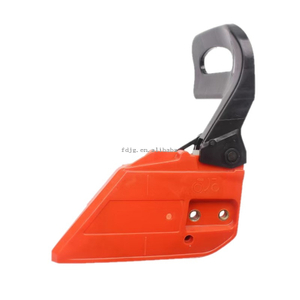

The brake plate assembly for 4500, 5200 and 5800 class saws wraps the braking hardware inside an orange plastic housing. The black loop handle works the brake shoes through a linkage and springs. Push the handle forward and the shoes clamp the brake drum; the chain stops, and the springs release when you let go. No saw teardown needed.

How do you know it is time to replace one? A handle that wobbles, a click or grind when you press it, a slow chain stop, or brake shoes that look thin on inspection — any of these says to fit a new assembly instead of repairing the old part. The 4500 and the 5200 or 5800 are close in design, but line the mounting holes up against your old part before you bolt it on.

Loggers, orchard workers and parts retailers should keep a chainsaw brake plate on the shelf. It is the part you hope to use only once, and you want it ready when you do.
