40-3 Pull Starter Which Machine Numbers It Fits

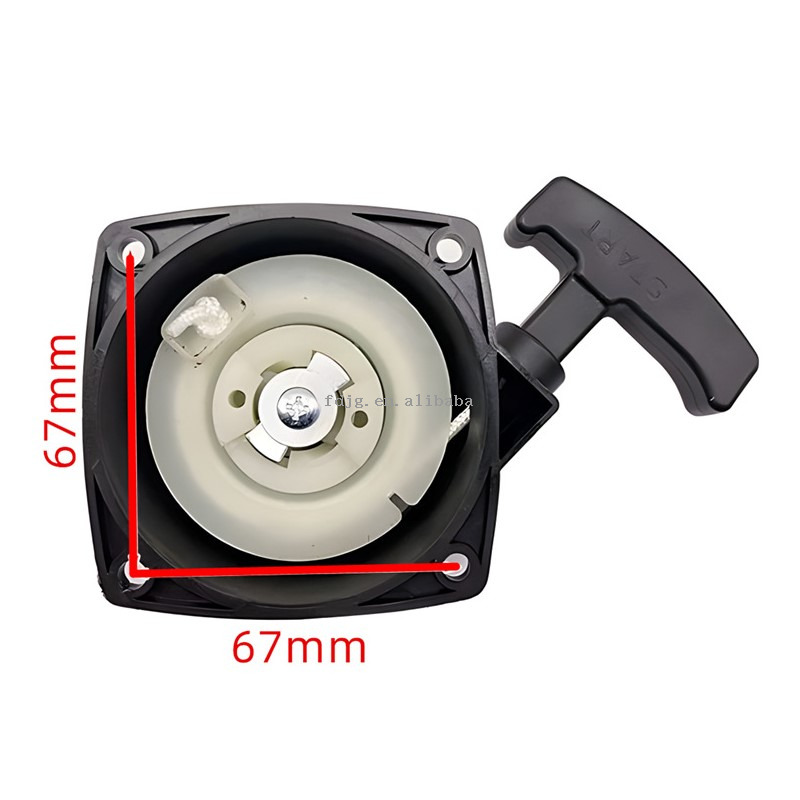

A fogger or a power sprayer runs in the field day after day, and the starter is one of the parts it wears out fastest. The 40-3 pull starter is a complete set. A black nylon housing, a square mounting flange with four bolt holes, a black T shaped handle, a pale nylon rope reel, a metal one-way clutch at the center and a pawl inside. Pull and the rope unwinds, the reel turns and the clutch spins the engine over. Let go, the return spring rewinds the rope, and the reel coasts on its own while the engine stays still.

Which machine numbers does the 40-3 belong to? It is a shared starter number across two stroke small gasoline engines, and sprayers, foggers and blowers all use it. The 865 series, EB865 and KS865, is a same source common fit and can be matched number for number. EB965, 3WF-2.6 and 1E40F-3 are engines from the same family that show up in listings as a common fit, but that has not been verified one by one, so compare the old flange holes or send a photo before fitting. Older 1E40F listings also point to the 18-3 starter, so double check that one.

Why replace the whole set? Some people only want a new rope, but the clutch claws, the pawl and the return spring are what fail first. A complete set fixes everything at once. The flange is the key to fitting: the four holes and their pattern must match the old part, so remove the old starter, count the holes, check the layout, then mount the new one.

There is also a right way to pull. Sprayers and foggers start far more times a day than cutting machines, so pull until the clutch engages and give it one firm pull to the end. A hard start means checking fuel, spark and choke first. Rope that runs out means the spring or the track; a pull that will not turn the engine means the clutch or pawl; a wobbling handle means the whole set goes.
